INSIGHT software, supplied with an SW-D USB wireless dongle, allows connection of up to 126 Crosby Straightpoint wireless load cells simultaneously onto any Windows tablet or laptop.
Need a price? Contact our team

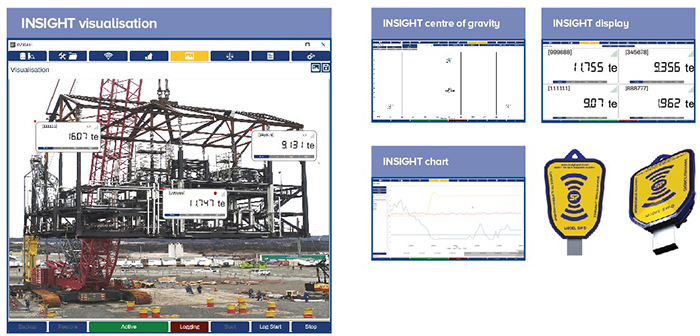

INSIGHT has four main features:
1. Multi-channel display and data logging mode – view and log load data from connected load cells plus total loads live on screen and directly into a .csv file for later analysis at speeds of up to 200Hz.
2. Visualisation mode – For complicated lifts import a photo of the lift and drag and drop load cell displays – make the screen look like the lift.
3. Centre of gravity mode – Connect to SP’s range of wireless compression load cells and use this feature to weigh and calculate the centre of gravity of large items and structures.
4. Proof Load Testing - Real-time graphing of load test and auto-generated test certificates.
- FEATURES
• Logging at timed intervals, manual or on
overload/underload
• Visual and audible alarms indicate overload,
underload, low battery and communications
error
• Zoom in to individual load cell to see data
trends and history
• 100% wireless, no easily damaged cables
• 700m or 2300ft range
- Displays and logs data up to 126 Straightpoint wireless load cells simultaneously
- Three weighing’s per C of G report with
averages and statistical analysis to ISO19901
• Plot load cell positioning using measurements or GPS co-ordinates
• Extra entry fields for operator, client, wind
speed, sea states and temperature for reporting
• Load cells may be split across several SW-D
dongles for large-scale projects
- Tandem Lifting and Lowering
- Water weight Testing
- Overhead Weighing
- Bollard Pulling
- Tug Testing
- Stevedoring
- Entertainment rigging
- Dynamic load monitoring
- Weighing large industrial items - absorbers,
jackets, transformers, generators and modules
Specifications/Technical Data
INSIGHT specifications |
 |
| Global Specifications - Insight Software | |
| Part number | INSIGHT |
| Crosby Part number | 2789318 |
| USB Dongle Operating temperature | -20°C to 70°C or -4°F to 158°F |
| Licence | RF Band Licence free |
| Wireless Frequency | 2.4GHz |
| Wireless Range | 700 metres or 2300 feet |
| Loadcell inputs | Up to 126 |
| PC requirements | Intel i5 processor with 8GB RAM. |
| Operating system | Windows |
About
Record live loadcell data from worksites using LoadConnect, a comprehensive cloud-based online dashboard that connects to either the WiFi version LCBS-W base station or the 3G/4G Network version LCBS-N base station transmitting data via a cellular micro sim card.
A solution to monitor loads and line tensions from anywhere in the world and at multiple locations. Stay connected, and improve safety and efficiency by permanently and wirelessly transmitting live data to a comprehensive data suite.
The cloud dashboard data will enhance productivity and efficiency at facilities, factories, shipbuilding yards or construction sites where detailed logging and reporting of load cell (crane) productivity, safety alerts, and throughput is required.
Need a price? Contact our team
How it works
Data is sent from Crosby SP wireless load cells by its connected LoadConnect base station and then transmitted to the LoadConnect online dashboard in real-time.
Simply subscribe and log in online to view the dashboard which has been specifically designed for industry professionals to view and access load data with a large array of alerts and alarms.
View asset location and share reports with a full analysis of productivity and utilisation, all data that will help improve efficiencies.
Free subscription for the first year.
Real-time - viewing of load cells (within 1 minute) by location or load cell.
Productivity - the amount of ‘lifts’ per day
Utilisation - how many load cells are active or on standby
Asset location - view precise coordinates and map of assets
Reporting - features include datalogging at customisable time intervals, sent via email to the recipient in .csv format
Alerts - Dashboard alerts for each load cell, these can also be added to the customisable reports.
- Over and under-load alarm limits triggered
- Loadcell error
- Loadcell low battery
- Loadcell permanent overload alert (over 110% of loadcell WLL)
- Loadcell overload alert (over 101% of loadcell WLL)
- Loadcell calibration due alert
- Loadcell RF error alert
- Loadcell cloud data transfer error
- Base station casing opened
- Base station power input done alert
- Base station high temperature / low temperature
- All events cleared alert
- FEATURES
• Dashboard overview
• Live load data
• Error and condition reporting
• Productivity and Utilisation graphs
• Regular email reporting
• Connect to BOLT to monitor tension on cables
• Connect to SP load cells to monitor loads
• Cloud-based solution to monitor loads from anywhere in the world
• Reduce site visits to remote sites
• Improve productivity by data analysis
• Faster reaction and collaboration
• Protect assets such as cranes and product
• Improve worksite safety
• Monitor lifting projects from across the globe
• Multiple overhead factory crane installations
• Cable or wire rope tension such as telecom towers or bridges
• Large-scale construction projects with many cranes - productivity and utilisation data improving efficiency.
• Multiple mooring points on ships or barges
Base station WiFi (Part: LCBS-W) wirelessly connects to Crosby Straightpoint load cells or wire rope tension meter (BOLT) transmitting load cell load data and alerts via the local WiFi network to the LoadConnect online dashboard.
The LCBS-W base station can be paired/connected with up to 16 SP wireless load cells (or 15 wireless and 1 cabled) for large-scale or hard-to-reach projects requiring permanent load monitoring.
Ideal for use within facilities, factories or construction sites where detailed logging and reporting of load cell (crane) productivity, safety alerts, and throughput is required.
Need a price? Contact our team
About
How it works
Connected Crosby SP load cells transmit data, to the paired LoadConnect base station, this data is then sent in real-time to the LoadConnect online dashboard.
Log in online from any location with an internet connection to the dashboard to view live load data, load alerts, asset location, share reports, and view productivity and utilisation from a PC, laptop or tablet - from anywhere in the world.
Base station supplied with USB dongle and configuration software to enable set up of load cell IDs, limits and local WiFi.
Required
- Connection to WiFi
- LCBS-W base station on site
- SW-D USB dongle and PC toolkit software for set up (supplied with LCBS-W)
- Power source 9-28v dc (backup battery gives 8hrs support) - could be solar or wind-generated.
- Up to 16 load cells, this can include one cabled.
- Subscription to LoadConnect online dashboard – free for the first year
- FEATURES
• Connect to up to 16 load cells
• Transmits live load data to an online dashboard
• Connect to BOLT to monitor tension on cables
• Connect to SP load cells to monitor loads
• Detailed logging of events and utilisation
• Productivity reporting of lifts and alarm conditions
• Safety and system status alerts
• Improve worksite safety with real-time load data
• Reduce site visits to remote sites
• Improve productivity by data analysis
• Faster reaction and collaboration
• Protect assets such as cranes and product
• Monitor lifting projects from across the globe
• Multiple overhead factory crane installations
• Cable or wire rope tension such as telecom towers or bridges
• Large-scale construction projects with many cranes - productivity and utilisation data improving efficiency.
• Multiple mooring points on ships or barges
LoadConnect base station network (Part: LCBS-N) connects to Crosby Straightpoint wireless load cells within range and transmits their live load readings and alerts via the 3G/4G network directly to up to 3 smartphones.
The LCBS-N base station can be paired with up to 16 SP wireless load cells for use at remote sites such as cell tower guy lines, marine moorings or aquaculture installations where autonomous remote monitoring and alerts via SMS of present load conditions, for instance, overload or underload, are required.
Configure the LCBS-N base station to receive real-time loads on demand via SMS to the base station or configure the base station to send an SMS of load(s) from connected load cells at a user-programmed time interval, every 60 minutes, for example in addition to triggered alerts.
Need a price? Contact our team
About
How it works
Connected Crosby SP load cells transmit data wirelessly to a paired LoadConnect base station, this data is sent in real-time, via SMS, to a configured smartphone(s) anywhere in the world. LoadConnect toolkit software will allow you to assign up to three smartphone numbers and each phone can poll the LoadConnect base station for real-time readings via SMS.
Users can configure custom schedules via the toolkit software installed on a PC or laptop. For instance, power up a load cell(s) remotely by time, date and day of the week to take a load reading and send that data to a smartphone via SMS.
Additionally, users can configure SMS alerts for each load cell for the following conditions:
|
|
Requirements
- SIM Card (user to provide with data option before installation)
- LCBS-N base station on-site
- SW-D USB dongle and PC toolkit software for set up (supplied with LCBS-N)
- Power source 9-28v dc (backup battery gives 8hrs support) - could be solar or wind-generated
- Up to 16 Crosby SP wireless load cells (or 1 cabled loadcell and 15 wireless load cells)
- Smartphone
- FEATURES
• SMS alerts
• Live load data on demand
• Error and overload/underload alerts
• Connect to multiple Crosby SP load cells
• Communicate with 1-3 smartphones
• Bi-directional data
• Global communication
• Minimise remote site visits with autonomous load monitoring
• Improve productivity with more data
• Faster reaction and collaboration
• Protect assets
• Improve worksite safety
• Monitor lifting projects from across the globe
• Monitor cable or wire tension such as telecom towers, bridges or ski lifts
• Remotely monitor loads on large-scale construction projects
• Hard-to-reach or remote sites
• Remote alarms on entertainment rigging systems
• Aquaculture installations
• View marine mooring loads
