Clamp On Line Tensionmeter - COLT Guy wire, steel wire tension shunt meter - Crosby|Straightpoint

COLT features

About

The Straightpoint COLT is a lightweight wire rope tension meter or shunt tension meter for fast and accurate measurement of tensions up to 11,000lb or 5000 kg and up to 1” or 25mm diameter.

Manufactured using an integral, high accuracy, Bluetooth module the COLT transmits load data wirelessly to any smart device running our Android or iOS app.

Constructed from aerospace grade aluminium the COLT digital tensiometer is lightweight and easy to handle and operates on wires that are already under tension. Once in place it allows the operator to quickly check tension on cables or wire ropes set at any angle.

Multiple drop tested from 3 metres or 10 feet.

A built-in magnetic smart device holder allows the COLT to be used as a traditional tension meter with on board display or the smartphone can be handheld or mounted elsewhere.

Supplied in a purpose made carry case the COLT is portable and utilises standard alkaline batteries making this perfect for on-site cable tension measurement across the world.

An optional calibration verification tool (CVT) allows the operator to self-check & verify calibration accuracy in the field if required.

Crowne Castle CED Tagline.pdf

FEATURES

Unlimited wire rope calibration database via Android or iOS app
Main swivel joints fitted with high quality bearings
Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes
Wireless Bluetooth 4.1 enabling operator to stand at safe distance up to 328 feet or 100 metres
Quick intuitive adjustable centre sheave makes changing wire rope sizes fast and easy
No easily broken external antennae
High waterproof resistant design IP67 or NEMA6 for all weather use
Massive battery life of 1000 hours operational time
As the library of wire rope diameters and constructions is increased each app user will benefit when they update and receive any new data.

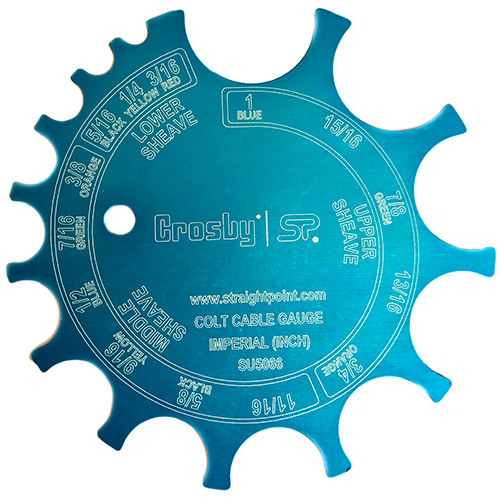

Cable gauge included.

APPLICATIONS

Guy wire maintenance on cell towers, bridges, flare stacks, antennas & masts.
Guy wire Tower Plumb & Tension
EHS guy wire, Turnbuckle tensioner.
Wire rope installations, comparing, equalising & measuring
Architectural wire rope installations
Median cable barrier tensioning
Utility cable overhead line monitoring
Elevator hoist, governor & compensating wire rope maintenance
Zip lines & assault course testing
Fall arrest systems
Metro, tram and rail transit electric wires & catenary testing
Ski lifts
Wire rope tie downs on vessels (using Tirfor)
Testing tension of ship mast wire ropes.
Tensioned trellis systems
Measuring Line Sag

SUPPLIED WITH THE FOLLOWING AS STANDARD

Proof test certificate
Operator Manual
Carry/Storage Case
2 year warranty

OPTIONAL

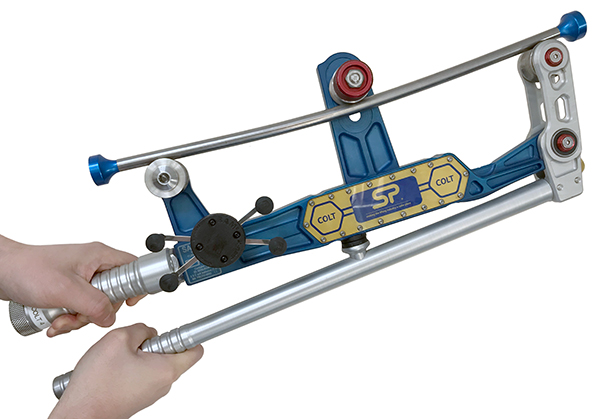

COLT verification tool (CVT) to ensure the COLTS accuracy measurements are as accurate as possible

colt verification tool

Specifications/Technical Data

Part Number	COLT5T
Max load	5000kg
Max load	11,000lbs
Resolution	10kg
Resolution	20lb
Units	kg, lbs, tonne & kN
Min wire rope ∅	∅5mm
Min wire rope ∅	∅3/16"
Max wire rope ∅	∅25mm
Max wire rope ∅	∅1"
Max line reduction	5mm with ∅10mm wire rope
Max line reduction	7/32" with ∅3/8" wire rope
Wire rope database	Infinite via Android or iOS app
Weight	3.5kg
Weight	7.7lbs
Battery Type	2 x 'C' cell batteries
Battery life	1000 hours Bluetooth transmission time
Operating temperature	-25c to +70c
Operating temperature	-13F to 158F
Protection	IP67
Protection	NEMA 6
Accuracy	±3% full scale if wire rope ∅ & construction known
Communication	Bluetooth 4.2
Supported OS version	Android 4.4 onwards & iOS 8 onwards
Dimension A	589 mm
Dimension A	23.2"
Dimension B	254mm
Dimension B	10"
Dimension C	200mm
Dimension C	7.9"
Dimension D	200mm
Dimension D	7.9"
Specifications assume COLT used on a wire rope with a fixed and flexible end

Wire Rope Library COLT2

SP COLT2 App Wire Rope Library

If you have a rope dimension that is not yet in our App library this can easily be added, additions are unlimited. Instructions - how to add a specific wire rope to the COLT App library

Metric Ropes
Sl No	Rope Name	Rope Dia(mm - Inch)	Strand Configuration	Material	WLL
1	6mm 7x19 WRC	6mm - 15/64"	7x19	Galvanised	0.478te
2	8mm 7x19 WRC	8mm - 5/16"	7x19	Galvanised	0.900te
3	9mm 6X36 WC	9mm - 23/64"	6X36	Galvanised	1te
4	10mm 7X19 WSC	10mm - 25/64"	7X19	Galvanised	1.2te
5	12mm 7X19 WSC	12mm - 15/32"	7X19	Galvanised	1.85te
6	12mm 6X36 WC	12mm - 15/32"	6X36	Galvanised	1.83te
7	14mm 7X19 WRC	14mm - 35/64"	7X19	Galvanised	2.79te
8	16mm 7X19 WSC	16mm - 5/8"	7X19	Galvanised	3te
9	18mm 6X36 IWRC	18mm - 45/64"	6X36	Galvanised	4.1te
10	19mm 7X19 WSC	19mm - 3/4"	7x19	Galvanised	3.6te
11	20mm 6X36 IWRC	20mm - 25/32"	6X36	Galvanised	3.8te
12	22mm 6X36 WC	22mm - 55/64"	6X36	Galvanised	5te
13	24mm 6X36 IWRC	24mm - 15/16"	6X36	Galvanised	5te
14	16mm 1X36 WS	16mm - 5/8"	1X36	Galvanised	3.5te
15	12mm P545	12mm - 15/32"	P545	Galvanised	2.5te
16	16mm P545	16mm - 5/8"	P545	Galvanised	3.5te
17	14mm COMPAK WC-14	14mm - 35/64"	COMPAK	Stainless Steel	3te
18	16mm COMPAK WC-16	16mm - 5/8"	COMPAK	Stainless Steel	3.5te
19	10mm 6X36 WS+IWRC	10mm - 25/64"	6X36	Galvanised	1.42te
20	12.8mm 1x19 Scandic	12.8mm - 0.503"	1X19	Galvanised	2.834te
21	15.4mm 1X19 Scandic	15.4mm - 0.606"	1X19	Galvanised	3.5te
22	12.7mm 8X19 Filler Wire IWRC	12.7mm - 1/2"	8X19	Galvanised	1.57te
23	12.7mm 9X21 Filler Wire IWRC	12.7mm - 1/2"	9X21	Galvanised	2.234te
24	15.875mm 9X21 Filler Wire IWRC	15.875mm - 5/8"	9xX21	Galvanised	3.5te
25	10mm 9X17 Filler Wire IWRC	10mm - 0.393"	9X17	Galvanised	1.37te
26	12.7mm 6X25 IWRC 12	12.7mm - 1/2"	6X25	Galvanised	2.414te
27	16mm 8X19 Filler Wire IWRC	16mm - 0.629"	8X19	Galvanised	2.406te
28	12mm 6x26 WS Swaged	12mm - 0.472"	6x26	Galvanised	2.2te
29	12mm 6x36 WS- IWRC	12mm- 15/32"	6x36	Galvanised	1.642te
30	16mm 6x36 WS-IWRC	16mm- 0.629"	6x36	AISI316	2.92te
31	8mm 7x19 AISI316	8mm - 0.31"	7x19	AISI316	0.682te
32	16mm 6x19+WSC	16mm-0.629"	6x19	Galvanised	3.5te
33	13.5mm Parafil Type F	13.5mm - 0.531"	Polyaramid	Polyolefin	2.1te
34	17mm Parafil Type F	17mm - 0.669"	Polyaramid	Polyolefin	3te
35	11mm Parafil Type F	11mm-7/16"	Polyaramid	Polyolefin	1.064te
36	5mm 7x7 AISI316 Stainless Steel	5mm- 13/64"	7x7	AISI316	0.302te
37	20mm Parafil Type F	20mm- 0.787"	Polyaramid	Polyolefin	4.5te
38	19mm 6x26 WS-IWRC	19mm - 3/4"	6x26	Galvanised	3.5te
39	13.4mm 19x2.68 Scandic	13.4mm- 0.527"	19x2.68	Galvanised	2.6te
40	15.4mm 19x3.08 Scandic	15.4mm- 0.606"	19x3.08	Galvanised	3.5te
41	17.6mm 19x3.52 Scandic	17.6mm-0.690"	19x3.52	Galvanised	3.5te
42	16mm 6x36 SC	16mm- 0.629"	6x36	Galvanised	3te
43	12mm 19x7 RHOL	12mm - 15/32"	19x7	Galvanised	1.89te
44	NR2 10.5mm Catenary rope	10.5mm - 0.4"	19/2.1mm	Coppe/Bz din 48201	1.3te
45	12.7mm 6x17S rope	12.7mm - 1/2"	6x17S (8-8-1)	High Carbon Steel	1.92te
46	6mm 1x19 SS316	6mm - 15/64"	1x19	SS316	0.5te
47	8mm 1x19 SS316	8mm - 5/16"	1x19	SS316	0.84te
48	12mm 1x19 SS316	12mm - 15/32"	1x19	SS316	1.766te
49	NR3 16.8mm AAAC Earth wire	16.8mm - 0.661"	19x3.35	AAAC	0.940te
50	NR1 13.2mm Contact wire Copper Silver.	13.2mm - 0.520"	Solid Rail Contact wire	Cu/Ag	0.900te
51	4.9mm 6x7 Steel	4.9mm - 0.19"	6x7	Steel	0.378te
52	16.8mm 19x3.35 Earth wire	16.8mm - 0.661"	19x3.35	AAAC	0.800te
53	AISI 316 10mm 1x19	10 mm - 0.393"	1x19	Stainless Steel	1.652te
54	AISI 316 10mm 7x19	10mm - 0.393"	7x19	Stainless Steel	1.140te
55	AISI 316 14MM rope/17mm with PVC cover	14mm - 0.551"	1x19	SS with PVC cover	3.24te
56	16mm 1x19 AISI 316	16mm - 0.622"	1x19	Stainless Steel	4te
57	Super Swage IWRC 6 x WS (26) G/O 12.6mm	12.6mm - 0.496"	6x26	Stainless Steel	3.18te
58	1x19 G/O 12mm	12mm - 0.472"	1x19	DSR	2.508te
59	7x19 SS/O (SUS304) 12mm	12mm - 0.472"	7x19	SS/O (SUS304)	2.008te
60	7x19 SS/O (SUS304) 10mm	10mm - 0.393"	7x19	SS/O (SUS304)	1.394te
61	IWRC 13mm 6xWS (26) G/L	13mm - 0.511"	6x26	Stainless Steel	2.860te
62	10mm 1x19 INOX	10mm - 0.300"	1x19	INOX	1.64te
63	12mm 7x19 INOX	12mm - 0.400"	7x19	INOX	1.6te
64	10mm 7X19 INOX	10mm - 0.300"	7x19	INOX	1.1te
65	14mm 7x19 INOX	14mm - 0.551"	7x19	INOX	2.222te
66	14mm 1x19 INOX	14mm - 0.551"	1x19	INOX	3.304te
67	16mm 1x19 INOX	16mm - 0.622"	1x19	INOX	3.5te
68	6mm 1x19 Galvanised	6mm - 15/64"	1x19	Galvanised	0.684te
69	6mm 7x19 INOX	6mm - 15/64"	7x19	INOX	0.408te
70	5mm 1x19 INOX	5mm- 0.196"	1x19	INOX	0.44te
71	12mm 6x36 IWRC RHOL	12mm - 0.472"	6x36	IWRC Stainless	1.64te
72	10mm 6X36 IWRC RHOL	10mm - 0.393"	6x36	IWRC Stainless	1.16te
73	8mm 6x36 IWRC RHOL	8mm - 0.314"	6x36	IWRC Stainless	0.77te
74	13.2mm copper tin contact wire(for testing purpose only)	13.2mm - 0.510"	Solid Rail Contact Wire	Copper Tin	1.02te
75	12.3mm copper silver contact wire (For testing purpose only)	12.3mm - 0.480"	Solid Rail Contact wire	Copper Silver	0.740te
76	12.3mm copper wire with ID groove (For testing purpose only)	12.3mm - 0.480"	Solid Rail Contact wire	Hand Drawn Copper	0.760te
77	21mm 1x37 Galva	21mm - 0.826"	1x37	Galvanised Steel	3.5te
78	16mm 6x7+1pp Poly Steel-Galv	16mm - 0.629"	6x7	Galvanised Steel	1.307te
79	8mm 7x19 Galvanised Steel	8mm - 0.314"	7x19	Galvanised Steel	0.873te
80	8mm 7x7 Galvanised Steel	8mm - 0.314"	7x7	Galvanised Steel	0.725te
81	6mm 7x7 Galvanised Steel	6mm - 15/64"	7x7	Galvanised Steel	0.407te
82	5mm 7x19 Galvanised Steel	5mm - 0.196"	7x19	Galvanised Steel	0.345te
83	11.43mm A302799 GIPS	11.43mm - 0.45"	A302799	GIPS Galvanised Steel	1.815te
84	8.18mm A320327 GIPS	8.18mm - 0.322"	A320327	GIPS Galvanised Steel	1.743te
85	6.53mm A304874 GIPS	6.53mm - 0.25"	A304874	GIPS Galvanised Steel	0.54te
86	6.35mm A240250 GIPS	6.35mm - 0.25"	A240250	GIPS Galvanised Steel	0.526te
87	14mm 6x24 O/O (RUD)	14mm - 0.55"	6x24	Galvanised Steel	1.8te
88	16mm 6x24 (RUD)	16mm - 0.629"	6x24	Galvanised Steel	2.348te
89	18mm 6x24 (RUD)	18mm - 0.708"	6x24	Galvanised Steel	2.971te
90	20mm 6x24 (RUD)	20mm - 0.787"	6x24	Galvanised Steel	3.673te
91	16mm 6xWS(26)+IWRC Super Swaged	16mm - 0.622"	6x26	Galvanised Steel	5.000te
92	15.4mm 1x19 ARNT	15.4mm - 0.606"	1x19	Galvanised Steel	3.480te
93	16mm 6x36WS-FC ARNT	16mm - 0.629"	6x36	Galvanised Steel	3.972te
94	12mm 6x36WS-FC ARNT	12mm - 0.472"	6x36	Galvanised Steel	1.898te
95	18mm 6x36ws ARNT	18mm - 0.700"	6x36	Galvanised RHOL	4.260te
96	7.8mm JIS G 3537 MES 1X7 galvanised steel	7.8mm - 0.307"	1x7	Galvanised Steel	0.84te
97	6.9mm JIS G 3537 MES 1x7 galvanised steel	6.9mm - 0.271"	1x7	Galvanised Steel	0.658te
98	6mm JIS G 3537 MES 1x7 galvanised steel	6mm - 0.236"	1x7	Galvanised Steel	0.498te
99	10mm 1x19 EHS galvanised steel (NINH THANH.CO.LTD)	10mm - 0.393"	1x19	Galvanised Steel	1.61te
100	12mm 1x19 EHS galvanised steel (NINH THANH.CO.LTD)	12mm - 0.472"	1x19	Galvanised Steel	2.304te
101	8.25 7x2.7 Galvanised Steel (Stillmark - Guy wire type A)	8.25mm - 0.324"	7x2.7	Galvanised Steel	1.02te
102	10mm 1x19 Galvansied Steel (Stillmark - Guy wire type B)	10mm - 0.392"	1x19	Galvanised Steel	1.795te
103	13.75mm 19x2.75 Galvanised Steel (Stillmark - Guy wire type C)	13.75mm - 0.541"	19x2.75	Galvanised Steel	2.733te
104	22mm 6X36 WS+IWRC INOX - AISI 316 (Cableries Namuroises)	22mm - 0.866"	6x36	INOX AISI 316	3.5te
105	3mm 7x19 Stainless Marine Grade	3mm- 0.118"	7x19	Marine Grade Stainless	0.210te
106	6mm 7x7 Stainless Marine Grade	6mm - 0.236"	7x7	Marine Grade Stainless	0.460te
107	10.8mm 1X19 Galvanised steel	10.8mm-0.42"	1x19	Galvanised Steel	1.899te
108	21mm 1X37 Galvanised steel	21mm-0.82"	1x37	Galvanised Steel	5.000te
109	15mm 1X19 Galvanised steel	15mm-0.59"	1x19	Galvanised Steel	3.472te
110	12.5mm 1X19 Galvanised steel	12.5mm-0.49"	1x19	Galvanised Steel	2.508te
111	9mm 1X19 Galvanised steel	9mm-0.35"	1x19	Galvanised Steel	1.240te
112	7.2mm 1X12 Galvanised steel	7.2mm-0.28"	1x12	Galvanised Steel	0.799te
113	16mm 1X19 Galvanised steel	16mm-0.63"	1x19	Galvanised Steel	4.240te
114	6mm 6x24 (JIS G 3525 grade G)	6mm-0.24"	6x24	JIS G 3525 Grade G	0.280te
115	9mm 6x24 (JIS G 3525 grade G)	9mm-0.35"	6x24	JIS G 3525 Grade G	0.630te
116	8mm 6x24 (JIS G 3525 grade G)	8mm-0.315"	6x24	JIS G 3525 Grade G	0.490te
117	10mm 6x24 (JIS G 3525 grade G)	10mm-0.394"	6x24	JIS G 3525 Grade G	0.770te
118	12mm 6x24 (JIS G 3525 grade G)	12mm-0.472"	6x24	JIS G 3525 Grade G	1.120te
119	22mm 6x24 (JIS G 3525 grade G)	22mm-0.866"	6x24	JIS G 3525 Grade G	3.770te
120	6mm 6x7+FC Galvanised Steel	6mm-0.236"	6x7+FC	Galvanised Steel	0.420te
Imperial Ropes
Sl No	Rope Name	Rope Dia(Inch-mm)	Strand Configuration	Material	WLL
1	3/16" 1X7 EHS (RED)	3/16" - 4.8mm	1X7	Galvanised	0.362te
2	1/4" 1X7 EHS (YELLOW)	1/4" - 6.4mm	1X7	Galvanised	0.603te
3	5/16" 1X7 EHS (BLACK)	5/16" - 7.9mm	1X7	Galvanised	1.016te
4	3/8" 1X7 EHS (ORANGE)	3/8" - 9.5mm	1X7	Galvanised	1.397te
5	7/16" 1X7 EHS (GREEN)	7/16" - 11.1mm	1X7	Galvanised	1.887te
6	1/2" 1X7 EHS (BLUE)	1/2" - 12.7mm	1X7	Galvanised	2.440te
7	5/8" 1X19 EHS (BLACK)	5/8" - 15.9mm	1X19	Galvanised	3.645te
8	11/16" 1X19 EHS (BLUE)	11/16" - 17.5mm	1X19	Galvanised	4.536te
9	3/4" 3X7 Pre-stressed	3/4" - 19mm	3X7	Galvanised	3te
10	3/4" 1X19 EHS (ORANGE)	3/4" - 19mm	1X19	Galvanised	3te
11	5/8" 1x7 EHS (BLACK)	5/8" - 15.9mm	1X7	Galvanised	3.5te
12	Messenger Copper Wire 0.813" 20.6mm	0.813" - 20.6mm	1 x 37	Copper	2.04te
13	Contact Wire 350kcmil Solid Grooved 0.62" 15.75mm	0.62" - 15.75mm	Solid Grooved	Copper	1.071te
14	1/2" 1X19 EHS (BLUE)	1/2" - 12.7mm	1 X 19	Galvanised	2.421te
15	9/16" 1X19 EHS (YELLOW)	9/16" - 14.3mm	1X19	Galvanised	3.175te
16	#4 ACSR (Swan)	0.250" - 6.35mm	6X1	ACSR	0.166te
17	#2 ACSR (Sparrow)	0.316" - 8.026mm	6X1	ACSR	0.259te
18	1/0 ACSR (Raven)	0.398" - 10.109mm	6X1	ACSR	0.388te
19	2/0 ACSR (Quail)	0.447" - 11.35mm	6X1	ACSR	0.482te
20	3/0 ACSR (Pegion)	0.502" - 12.7mm	6X1	ACSR	0.603te
21	4/0 ACSR (Penguin)	0.563" - 14.3mm	6X1	ACSR	0.753te
22	397.5 ACSR (Chickadee)	0.743" - 18.872mm	6X1	ACSR	0.901te
23	266.8 ACSR (Partridge)	0.642" - 16.3mm	26X7	ACSR	1.025te
24	336.4 ASC (Tulip)	0.684" - 17.37mm	18X1	ASC	0.787te
25	3/8" 7X19	3/8" - 9.525mm	7X19	Galvanised	1.306te
26	5/8" 1X19 CL-AL A586	5/8" - 15.875mm	1X19	Galvanised	3.5te
27	7/8" 1X19 EHS	22mm - 7/8"	1X19	Galvanised	3.5te
28	0.792" 19X1 477.0 Cosmos	20mm - 0.792"	19X1	AAC-Aluminium	0.758te
29	9/16" 1X7 EHS (YELLOW)	9/16" - 14.3mm	1X7	Galvanised	3.175te
30	2/0 1x18 Copper	25/64" - 10mm	1x18	Copper	0.368te
31	4/0 1x18 Copper	0.511" - 13mm	1x18	Copper	0.558te
32	1/2" 6x36 Fiber Wire	1/2" - 12.5mm	6x36	Fiber Wire	2.4te
33	5/8" 6x36 Fiber Core	5/8" - 16mm	6x36	Fiber Core	3.22te
34	9/16" 6x36 Fiber Wire	9/16" - 14mm	6x36	Fiber Wire	2.596te
35	3/4" 6x36 Fiber Core	3/4" - 19mm	6x36	Fiber Core	3.5te
36	5/8" 6x26 Ws-IWRC	5/8" - 16mm	6x26	WS-IWRC	3.5te
37	1/2" 1x7 Grade 270	1/2" - 12.7mm	1x7	Galvanised	2.97te
38	1" 1x19 EHS	1" - 25.4mm	1x19	Galvanised	3.80te
39	3/8" 6x19 CLASS GALV RRL EIPS	3/8" - 9.52mm	6x19	Galvanised	1.233te
40	1/2" 8x19 Seale Traction RRL Prestreched Hoist Rope	1/2" / 12.7mm	8x19	Bright (Uncoated)	1.315te
41	5/8" 8x19 Seale Traction RRL Prestreched Hoist Rope	5/8" - 16mm	8x19	Bright (Uncoated)	2.088te

Verification Tool (CVT)

Straightpoint CVT In order to ensure the COLTS accuracy measurements are as accurate as possible, SP also supply a calibration verification rod that is specifically designed to check the COLTS calibration accuracy.
The calibration verification checking process is quick and simple. Open the COLT app on your smart mobile device, connect to the COLT device via Bluetooth, and select ‘Cal Check’ within the ‘Rope’ menu section of the app. Place COLT on a flat surface and then zero the measurement on screen. Place the 20 inch steel rod in the centre of all 3 sheaves and apply loading arm until it is fully engaged with the magnetic catch. The force measurement reading should read as 3000lbs (within an accuracy range of <3%>).
If the measurement is greater than 2800lbs to 3200lbs then you will need to contact SP and arrange for the COLT to be sent back to SP for recalibration. The process is as simple as that!
