6.5t Self indicating dynamometer (SID)

About

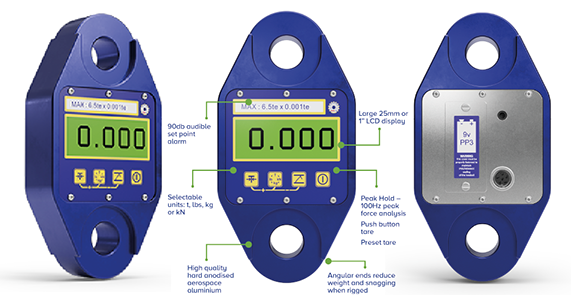

This self-indicating version of the well-known product ‘Bluelink’ has advanced features and benefits, providing solutions where close-up load monitoring is required, such as when operating lever or chain hoists at height or lifting vehicle motors.

The advanced microprocessor-based electronics provide the SID with high-speed read rates, extreme resistance to industrial-level noise and unprecedented stability. It features full-function push button controls for:

• Tare and preset tare
• Selectable measurement units (lbs, kg, kN and tonnes)
• 100Hz high-speed peak hold
• Audible set-point alarm
• Overload counter

Providing accurate load measurement and incident and injury prevention this dynamometer is rigged using industry-standard shackles such as Crosby G2130, the compact design minimises headroom loss (6.14” or 156mm from eye to eye).

Constructed with high-grade aircraft quality aluminium and with a safety factor of 6:1, its lightweight design does not sacrifice on strength in fact, Crosby SP’s link style dynamometers are on average 30% lighter than other suppliers.
