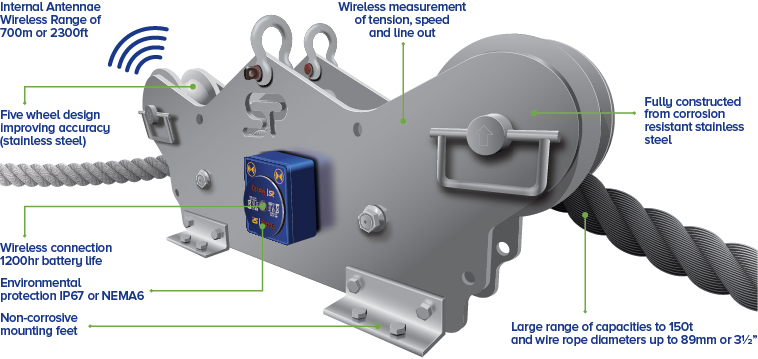

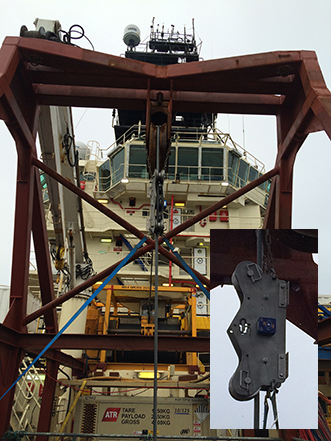

The TIMH range is a Wireless Running Line Tensiometer or RLTM built with dockside, marine, offshore, towage and salvage applications in mind. It is particularly useful where there is no anchor or dead end on the line to rig a Straightpoint Radiolink or Loadlink digital dynamometer to measure tension force at speeds up to 20m/min or 65ft/min.
Two versions of the TIMH are available:
- Long-range 2.4GHz version providing industry leading wireless range of 700m or 2300ft to SP's SW-HHP handheld or software options.
- Bluetooth output and can be connected to any smartphone running our free HHP app on iOS or Android at ranges up to 100m or 328ft.
The TIMH is constructed from marine grade stainless steel and is suitable for many wire rope configurations up to 80t and will, as an option, calculate lineout and speed in metres or feet. The TIMH has several mounting points featured in its unique design but if other mounting options are required Straightpoint can provide a custom engineered solution specific to your application.
Available as a wireless or cabled system utilising Straightpoint’s HHP range of handheld displays or SW-MWLC software, this impressive Running Line Dynamometer or RLTM is available to ship from stock, to anywhere in the world within days.
FEATURES
- Measure tension, line speed and distance
- Five wheel design improving accuracy
- Cabled or wireless options
- Easy to install and replace batteries (4 x AA standard Alkaline)
- Fully constructed from corrosion resistant stainless steel
- IP67/NEMA6 Loadpin
- Software available to data log and monitor or analogue output
BENEFITS
- Large range of capacities to 150t and wire rope diameters up to 89mm/3 1/2”
- Line in/out, distance and speed
- Maintenance free heavy duty needle bushes
APPLICATIONS
- Dockside
- Marine
- Offshore

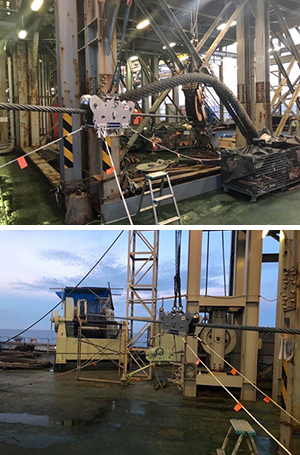

- Towage and Salvage
- Single point mooring
- Spread mooring
- Tenson mooring
- Dynamic positioning
- Wireline Services
WARRANTY & ASSURANCE
- 2 year warranty
- Design validated by F.E.A.
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Proof test certificate
- Operator Manual
- Carry/Storage Crate
Specifications/Technical Data
 |
|
|
Wireless Approvals
|
 |
| Part Number |
MTIMH10TRD |
TIMH10TRD |
TIMH25TRD |
TIMH56TRD |
TIMH80TRD |
TIMH150TRD |
| Crosby Part number |
2789054 |
2789136 |
2789139 |
2789144 |
2789146 |
2789270 |
| Capacity |
10 te |
10 te |
25 te |
56 te |
80 te |
150 te |
| 22,000 lb |
22,000 lb |
55,000 lb |
123,200 lb |
176,000 lb |
330,000 lb |
| Resolution |
0.01 te |
0.01 te |
0.02 te |
0.05 te |
0.1 te |
0.2 te |
| 20 lb |
20 lb |
50 lb |
100 lb |
200 lb |
500 lb |
| Wire rope Ø mm |
4-19 mm |
13-19 mm |
16-26 mm |
28-38 mm |
40-52 mm |
52-89 mm |
| 5/32 in -3/4 in |
1/2' in - 3/4' in |
5/8 in - 1 in |
1 1/8 in - 1 1/2 in |
1 5/8 in - 2 in |
2 in - 3 1/2 in |
| Weight |
9 kg |
90 kg |
86 kg |
81 kg |
76 kg |
230 kg |
| 20 lb |
198 lb |
190 lb |
179 lb |
168 lb |
506 lb |
| Battery Type |
Wireless version 4x AA alkaline |
| Battery Life |
Wireless version 1200 hrs |
| Operating Temp |
-10 to +50 °C / 14 to 122˚F |
| Accuracy |
2% FS |
| Range (Max) |
700 m / 2300 ft |
| Protection |
IP67 / NEMA 6 |
| Max Speed |
50 m per minute / 164 ft per minute |
20 m per minute / 65 ft per minute |
| Line out and speed |
Yes via SW-MWLC software |

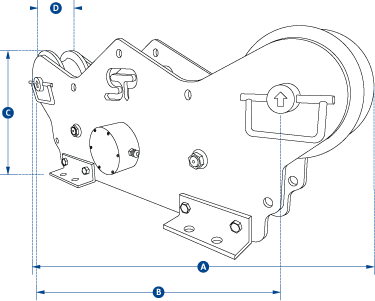

| Dimension A |
422 mm |
865 mm |
1250 mm |
| 16.62 in |
34.05 in |
49.2 in |
| Dimension B |
328 mm |
674 mm |
674 mm |
674 mm |
674 mm |
1050 mm |
| 12.9 in |
26.53 in |
26.53 in |
26.53 in |
26.53 in |
41.33 in |
| Dimension C |
152mm |
329mm |
329mm |
329mm |
329mm |
416mm |
| 5.98 in |
12.95 in |
12.95 in |
12.95 in |
12.95 in |
16.37 in |
| Dimension D |
36 mm |
111 mm |
111 mm |
111 mm |
111 mm |
153 mm |
| 1.4 in |
4.37 in |
4.37 in |
4.37 in |
4.37 in |
6.02 in |
Customisation Options
At Crosby Straightpoint our load cells are fully integrated which enables us to provide customised load monitoring solutions for all projects, large or small.
See our process here:
Custom load cell process.The TIMH can be customised for large or small projects.
For example, common requests:
- Changes in Sheave Sizes for different Rope Size vs Capacity
- Different capacities
- Calibrated capacity changes
- 4-20mA Output (for Tension only)Enhanced Ingress Protection
- Pulse Output (for Speed and Payout on external PLC)
- Operation by permanent DC Power
- Alternative Sheaves, Aluminium/Nylon
Contact our dedicated project engineer with your requirements,
via the form below.
