The SA700C transmitter connects to strain gauge transducers such as load cells, torque sensors and pressure transducers allowing them to form part of a Straightpoint wireless system.
Load data from the SA700C can be received by multiple receivers that include SW-HHP handheld, SW-MWLC software or our range of wireless accessories.
The load data transmitted by the SA700C has been designed for battery operation and supports an ultra low-power sleep mode whilst offering class leading wireless coverage and range.
Configurable transmission rates from once per day to 200 per second cope with a wide range of measurement and monitoring applications.
Housed in an aerospace grade aluminium enclosure and sealed to IP67 / NEMA6 with no external antennae the SA700C provide a flexible solution to your wireless load cell requirements.
Specifications
Wireless Approvals
Federal Communications Commission
FCC: W70MRF24J40MDME
Industry Canada
IC: 7693A-24J40MDME
Japan Certification
ID: 204-52-1
SA700C specifications
| Part | SA700C |
| Battery Type | 4 x AA |
| Battery Life | 1200Hrs continuous |
| Operating Temp | -10 to +50 °C / 14˚ to 122˚F |
| Protection | IP67 / NEMA6 |
| Frequency | 2.4GHz |
| Range | 700 metres / 2300 feet (if bluetooth 100m/328ft) |
| Data Rate | 3Hz - up to 200Hz can be ordered for dynamic load monitoring applications |
| Max Sensitivity | 3.2mv/v |
| Minimum gauge resistance | 85Ω |
| Transmit Power | 10mW |

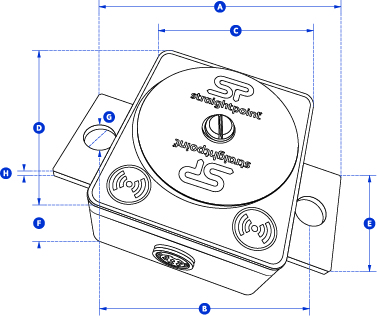

| L x W x H | 102x89x45 mm /4.02x3.5x 1.77 inches |
| Connector | Binder 423 series, 6 pole female socket |
