Dynamometer load cell approved to Ex ia II C T4 Ga for use in zone 0,1 & 2 hazardous areas. This intrinsically safe version of the bestselling Radiolink plus is capable of both weighing and dynamic load monitoring in hazardous environments such as on and offshore oil, gas and chemical industries. Available from stock in capacities from 1t to 300t, constructed from high-quality aircraft-grade aluminium and featuring an advanced internal design structure.

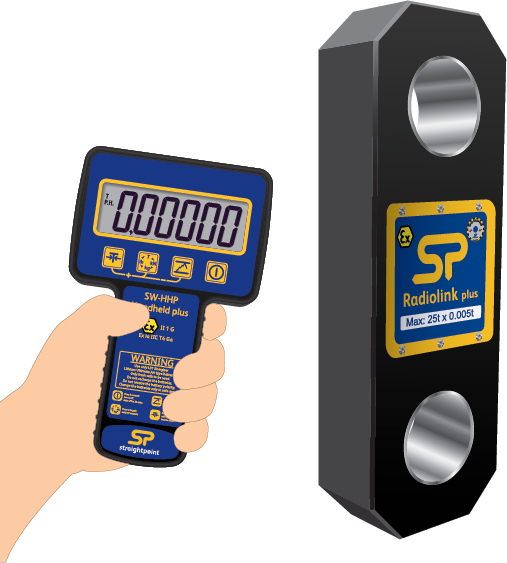

Paired with the SP Ex Handheld you can read up to four SP Ex load cells simultaneously allowing the operator to monitor a multi pick point lift from a single handheld at safe distances of up to 500m/1640ft with the added benefits of on-screen overload and calibration due warnings.
This internal design structure not only provides the product with an unrivalled strength to weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell's electronic components with IP67/NEMA6 environmental protection even with the battery cover plate missing, making this industry-leading dynamometer even more suitable for use in the harshest environments. Featuring industry-leading wireless technology and range, the versatile Radiolink plus - ATEX is supplied with an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz.
Data is transmitted wirelessly utilising the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error-free transmission of both static weight and dynamic load to an approved wireless handheld controller, the SW-HHP- ATEX includes an option to monitor four loadcells, simultaneously, allowing the operator to monitor a multi pick point lift from a single handheld.
The Radiolink plus- ATEX utilises easily sourced Energizer® Ultimate Lithium AA Batteries and features advanced circuitry designed to protect the load cell from damage if the batteries are incorrectly installed. This advanced circuitry extends battery life and the use of easily sourced batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement.
It is easy to see why globally the Radiolink plus - is the number one choice for weighing and dynamic load monitoring in hazardous applications.
- Proprietary 2.4 GHz Wireless
- Industry-Leading Wireless Range
- Environmentally Sealed
- Unmatched Battery Life
- Internal Antennae
- Compact Size
- Remote On-Off
- LightweightPeak Hold
- Advanced Options Available
- Tare
- Zones 0,1&2 hazardous areas
- Error-free Data Transmission
- Unrivalled Resolution
APPLICATIONS
- Hazardous areas
- Offshore oil & gas
- Chemical industries
- 2 year warranty
- Design validated by F.E.A.
- DNV-GL Type Approval
- Independently approved by CSA
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Proof test certificate
- Operator Manual
- Carry/Storage Case
- RFID Tagged
- Lithium AA Batteries
Specifications/Technical Data
![]() |
Ex battery type: SAFETY REMINDER |
![]() |
Ex Radiolink plus additional technical data
|
|
|
Wireless Approvals
|
Part Number | RLP1T-ATEX | RLP2T5-ATEX | RLP6T5-ATEX | RLP12T-ATEX | RLP25T-ATEX | RLP35T-ATEX | RLP55T-ATEX | RLP75T-ATEX | RLP100T-ATEX | RLP150T-ATEX | RLP200T-ATEX | RLP250T-ATEX | RLP300T-ATEX |
Crosby Part |
2789411 | 2789412 | 2789413 | 2789414 | 2789415 | 2789416 | 2789417 | 2789418 | 2789419 | 2789420 | 2789421 | 2789422 | 2789423 |
Capacity | 1,000 kg | 2.5 te | 6.5 te | 12 te | 25 te | 35 te | 55 te | 75 te | 100 te | 150 te | 200 te | 250 te | 300 te |
2,200 lb | 5,500 lb | 14,300 lb | 26,000 lb | 55,000 lb | 77,000 lb | 120,000 lb | 165,000 lb | 220,000 lb | 330,000 lb | 440,000 lb | 550,000 lb | 660,000 lb | |
Resolution | 0.5 kg | 0.001 te | 0.001te | 0.002 te | 0.005 te | 0.005 te | 0.01 te | 0.01 te | 0.05 te | 0.05 te | 0.1 te | 0.1 te | 0.1 te |
1 lb | 2 lb | 2 lb | 5 lb | 10 lb | 10 lb | 20 lb | 20 lb | 100 lb | 100 lb | 200 lb | 200 lb | 200 lb | |
Units | kg | te | te | te | te | te | te | te | te | te | te | te | te |
lb | lb | lb | lb | lb | lb | lb | lb | lb | lb | lb | lb | lb | |
Weight | 2.5 kg | 2.5 kg | 3.4 kg | 4.7 kg | 6 kg | 9.6 kg | 14 kg | 17 kg | 35 kg | 47 kg | 83 kg | 83 kg | 119 kg |
5.5 lb | 5.5 lb | 7.5 lb | 10.4 lb | 13.2 lb | 21.2 lb | 30.9 lb | 37.5 lb | 77.2 lb | 103.6 lb | 183 lb | 183 lb | 262.4 lb | |
Safety Factor | 12.1 | 07:01 | 07:01 | 07:01 | 05:01 | 05:01 | 05:01 | 05:01 | 05:01 | 04:01 | 05:01 | 4:1 | 5:1 |
Approval Spec | Ex ia II C T4 Ga for use in zone 2, 1, and 0 - certificate number IECEx SIR 15.0071X & SIRA 15ATEX2195X | ||||||||||||
Battery Type | Handheld - 2 x Energizer® Ultimate Lithium AA / Loadcell 4 x Energizer® Ultimate Lithium AA | ||||||||||||
Battery Life | Handheld - 40 hrs / Loadcell 1200 hrs continuous | ||||||||||||
Display Type | 240x128 graphic LCD | ||||||||||||
Op Temp | -10 to +50 °C | ||||||||||||
Accuracy | +/- 0.1% FS | ||||||||||||
Frequency | 2.4GHz | ||||||||||||
Range | 500 metres | ||||||||||||
1640 ft | |||||||||||||
Data Rate | 3Hz - up to 200Hz can be ordered for dynamic load monitoring applications | ||||||||||||
Protection | IP67 | ||||||||||||
Dimension A | 204 | 204 | 249 | 305 | 340 | 393 | 424 | 470 | 608 | 670 | 700 | 700 | 806 |
8.03 | 8.03 | 12.01 | 13.39 | 15.47 | 16.69 | 18.5 | 23.94 | 26.38 | 27.56 | 27.56 | 31.73 | ||
Dimension B | 43 | 43 | 43 | 47 | 60 | 75 | 75 | 75 | 99 | 99 | 144 | 144 | 150 |
1.69 | 1.69 | 1.69 | 1.85 | 2.36 | 2.95 | 2.95 | 2.95 | 3.9 | 3.9 | 5.67 | 5.67 | 5.91 | |
Dimension C | 104 | 104 | 113 | 113 | 115 | 126 | 180 | 202 | 255 | 303 | 350 | 350 | 426 |
4.09 | 4.09 | 4.45 | 4.45 | 4.53 | 4.96 | 7.09 | 7.95 | 10.04 | 11.93 | 13.78 | 13.78 | 16.77 | |
Dimension D | 146 | 146 | 165 | 193 | 215 | 225 | 230 | 260 | 320 | 360 | 350 | 350 | 350 |
5.75 | 5.75 | 6.5 | 7.6 | 8.46 | 8.86 | 9.06 | 10.24 | 12.6 | 14.17 | 13.78 | 13.78 | 13.78 | |
Dimension ØE | 24.5 | 24.5 | 38 | 47.5 | 55 | 60 | 76 | 76 | 109 | 109 | 145 | 145 | 160 |
0.96 | 0.96 | 1.5 | 1.87 | 2.17 | 2.36 | 2.99 | 2.99 | 4.29 | 4.29 | 5.71 | 5.71 | 6.3 | |
Dimension F | 48 | 48 | 66 | Not relevant in this capacity | |||||||||
1.89 | 1.89 | 2.6 | |||||||||||
Dimension G | 19 | 19 | 32 | ||||||||||
0.75 | 0.75 | 1.26 | |||||||||||
Crosby Shackle | G2130 | G2140 | |||||||||||
Loading Pin Ø | 19 | 19 | 25 | 35 | 51 | 57 | 57 | 70 | 83 | 95 | 121 | 127 | 152 |
3/4 in | 3/4 in | 1 in | 1 3/8 in | 2 in | 2 1/4 in | 2 1/4 in | 2 3/4 in | 3 1/4 in | 3 3/4 in | 4 3/4 in | 5 in | 6 in |
