INSIGHT software, supplied with an SW-D USB wireless dongle, allows connection of up to 126 Crosby Straightpoint wireless load cells simultaneously onto any Windows tablet or laptop. Now with a Simulation Mode, try before you buy.
Need a price? Contact our team

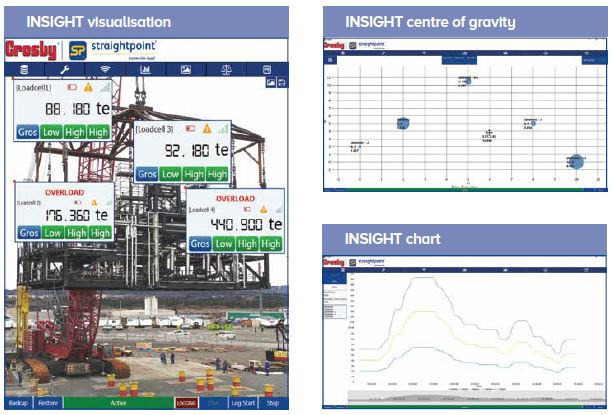

INSIGHT has four main features:
1. Multi-channel display and data logging mode – view and log load data from connected load cells plus total loads live on screen and directly into a .csv file for later analysis at speeds of up to 200Hz.
2. Visualisation mode – For complicated lifts import a photo of the lift and drag and drop load cell displays – make the screen look like the lift.
3. Centre of gravity mode – Connect to SP’s range of wireless compression load cells and use this feature to weigh and calculate the centre of gravity of large items and structures.
4. Proof Load Testing - Real-time graphing of load test and auto-generated test certificates.
- FEATURES
• Logging at timed intervals, manual or on
overload/underload
• Visual and audible alarms indicate overload,
underload, low battery and communications
error
• Zoom in to individual load cell to see data
trends and history
• 100% wireless, no easily damaged cables
• 700m or 2300ft range
- Displays and logs data up to 126 Straightpoint wireless load cells simultaneously
- Three weighing’s per C of G report with
averages and statistical analysis to ISO19901
• Plot load cell positioning using measurements or GPS co-ordinates
• Extra entry fields for operator, client, wind
speed, sea states and temperature for reporting
• Load cells may be split across several SW-D
dongles for large-scale projects
- Tandem Lifting and Lowering
- Water weight Testing
- Overhead Weighing
- Bollard Pulling
- Tug Testing
- Stevedoring
- Entertainment rigging
- Dynamic load monitoring
- Weighing large industrial items - absorbers,
jackets, transformers, generators and modules
Specifications/Technical Data
INSIGHT specifications |
 |
| Global Specifications - Insight Software | |
| Part number | INSIGHT |
| Crosby Part number | 2789318 |
| USB Dongle Operating temperature | -20°C to 70°C or -4°F to 158°F |
| Licence | RF Band Licence free |
| Wireless Frequency | 2.4GHz |
| Wireless Range | 700 metres or 2300 feet |
| Loadcell inputs | Up to 126 |
| PC requirements | Intel i5 processor with 8GB RAM. |
| Operating system | Windows |
