About
The Crosby Straightpoint Bolt-On-Line-Tensiometer or BOLT is a lightweight wire rope tension meter or shunt tension meter for fast and accurate measurement of tensions up to 20,000lbf / 10,000kgf and up to 1.25” / 32mm diameter wire ropes.
The BOLT is designed to be mounted permanently or temporarily on wire rope or cable installations to monitor the tension and transmit the load via 2.4GHz signal to three options of the receiver:
- LoadConnect - A base station allows connection to up to 16 BOLT load cells and transmits data via SMS messaging from any global location with 3G or 4G
- SW-HHP - Handheld display with a wireless range of 1000m or 3280ft to up to four BOLTs
- INSIGHT - Software multi-channel display and datalogging, connect 126 BOLTs within a wireless range of 700m or 2300ft
Sealed to IP67 or NEMA6 and constructed from aerospace-grade aluminium, the BOLT digital tensiometer is lightweight, easy to handle and operates on wires which are already under tension. Once installed it enables the operator to quickly check tension on cables or wire ropes set at any angle.
BOLT may be powered by the on-board AA batteries for up to 50 days of continuous measures at 3Hz or if needed to be fitted for longer periods or in remote sites may be powered via the LoadConnect base station via low voltage cables or solar battery pack solutions allowing for permanent power.
It is supplied inclusive of an SW-D dongle, to make on-the-spot calibrations to achieve greater accuracy of 2-3%; standard factory accuracy is 3-5%.
• Proprietary and secure 2.4 GHz Wireless
• Leading Wireless Range of 1000m/3280ft when connected to SW-HHP
• Multiple drop tested from 3 metres or 10 feet.
• Internal Antennae
• Remote On-Off from handheld display or software
• Weatherproof proof allowing mounting in a permanent position on a wire rope or cable
• Guy wire maintenance and monitoring on cell towers, bridges, flare stacks, antennas and masts.
• Guy wire Tower Plumb and Tension
• EHS guy wire, Turnbuckle tensioner.
• Architectural wire rope installations
• Median cable barrier tensioning
• Utility cable overhead line monitoring
• Governor & compensating wire rope maintenance
• Zip lines & assault course testing
• Metro, tram and rail transit electric wires & catenary testing
• Ski lifts
• Tensioned trellis systems
- 2-year warranty
- Design validated by F.E.A.
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Calibration certificate
- Multi-lingual user manual
- USB Dongle and calibration software
- Carry case
 |
| Need a price? Contact Us |
About
 |
|
 |
|
 |
The Straightpoint COLT is a lightweight wire rope tension meter or shunt tension meter for fast and accurate measurement of tensions up to 11,000lb or 5000 kg and up to 1” or 25mm diameter.
Manufactured using an integral, high-accuracy, Bluetooth module the COLT transmits load data wirelessly to any smart device running our Android or iOS app.
The latest COLT App has two key modes, one for measuring tension on static wire rope lines and the other for the installation, repair and maintenance of elevator cars.
Wire Rope Mode:
• Records GPS coordinates
• Logs the local temperature and wind speed from the local NOAA
• Multi anchor data logging with camera mode for a photo on your report
Elevator Mode:
• Car weighing – measure tension on each cable and automatically calculate car weight
• Car balancing – measure and calculate the balance of load across up to 10 cables
Multiple drop tested from 3 metres or 10 feet.
Constructed from aerospace-grade aluminium the COLT digital tensiometer is lightweight and easy to handle and operates on wires that are already under tension. Once in place, it allows the operator to quickly check tension on cables or wire ropes set at any angle. A built-in magnetic smart device holder allows the COLT to be used as a traditional tension meter with an onboard display or the smartphone can be handheld or mounted elsewhere.
Supplied in a purpose-made carry case the COLT is portable and with standard alkaline batteries making this perfect for on-site cable tension measurement across the world.
The included calibration verification tool (CVT) allows the operator to self-check & verify calibration accuracy in the field if required.
- Unlimited wire rope calibration database via Android or iOS app
- Main swivel joints fitted with high-quality bearings
- Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes
- Wireless Bluetooth 4.1 enables the operator to stand at a safe distance of up to 328 feet or 100 metres
- Quick intuitive adjustable centre sheave makes changing wire rope sizes fast and easy
- No easily broken external antennae
- High waterproof resistant design IP67 or NEMA6 for all-weather use
- Massive battery life of 1000 hours of operational time
- As the library of wire rope diameters and constructions is increased each app user will benefit when they update and receive any new data.
- Cable gauge and verification rod included.
- Guy wire maintenance on cell towers, bridges, flare stacks, antennas & masts
- .Elevator car weighing and wire rope balancing
- Guy wire Tower Plumb & Tension
- EHS guy wire, Turnbuckle tensioner.
- Wire rope installations, comparing, equalising & measuring
- Architectural wire rope installations
- Median cable barrier tensioning
- Utility cable overhead line monitoring
- Zip lines & assault course testing
- Fall arrest systems
- Metro, tram and rail transit electric wires & catenary testing
- Ski lifts
- Wire rope tie-downs on vessels (using Tirfor)
- Testing tension of ship mast wire ropes.
- Tensioned trellis systems
- Measuring Line Sag
- Proof test certificate
- Operator Manual
- Robust Peli-type carry/storage case
- 2-year warranty
- COLT verification tool (CVT) to ensure the COLTS accuracy measurements are as accurate as possible
To ensure the COLTS measurements are accurate included with the COLT is the CVT (Calibration Verification Tool). The CVT is specifically designed to check the COLTS calibration accuracy - Not to be confused with performing a physical calibration. The calibration verification checking process is quick and simple:

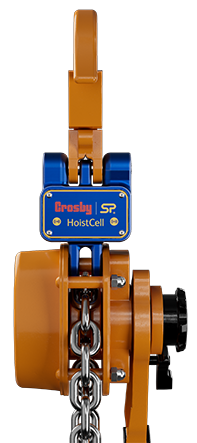

HoistCell is a combination of Crosby SP and KITO.
A chain hoist with integrated Bluetooth load monitoring
technology.
HoistCell is wireless and will provide accurate, safe load monitoring, from a distance, attached to SP’s wireless free to
download Android and iOS App.
The App provides the operator with a wireless range of up to 328ft or 100m – allowing them to be in the safety area away from the load with no requirement to read a load on the loadcell itself. The app will also allow the operator to log data versus time or on events such as over or underload and the adjustable alarm will alert the operator on their smartphone if any overload is occurring.
HoistCell provides the perfect solution for limited headroom applications.
About
- Hoist with integrated wireless load monitoring
- Load data directly to Android or iOS device
- Overload alert
- Wireless range 100m / 328ft
- Removable battery, life 250hrs
- Loadcell, robust high-strength aluminium
- IP67 / NEMA6
- Compatible with KITO LB lever hoist capacities
800kg, 1t, 1.6t, 2.5t, 3.2t, 6.3t, 9t and KITO
CB hand chain hoists up to 10t.
- Aircraft (engine) installation & maintenance
- Construction
- Steel working
- Telecom installation & maintenance
- Electricity pylon installation & maintenance
- Entertainment & theatre rigging
- 2-year warranty
SUPPLIED WITH THE FOLLOWING AS STANDARD
- SW-HHP handheld display
- 6 x AA Batteries
- Calibration & proof test certificate
- User manual
- Carry/transit case
- RFID Tagged
About
Designed to replace outdated mechanical products still in the field, this 14,300lb (6500kg) Dynamometer, the ‘SID’, is the latest Crosby SP product to feature their self-indicating display.
This self-indicating version of the well-known product ‘Bluelink’ has advanced features and benefits, providing solutions where close-up load monitoring is required, such as when operating lever or chain hoists at height or lifting vehicle motors.
The advanced microprocessor-based electronics provide the SID with high-speed read rates, extreme resistance to industrial-level noise and unprecedented stability. It features full-function push button controls for:
• Tare and preset tare
• Selectable measurement units (lbs, kg, kN and tonnes)
• 100Hz high-speed peak hold
• Audible set-point alarm
• Overload counter
Providing accurate load measurement and incident and injury prevention this dynamometer is rigged using industry-standard shackles such as Crosby G2130, the compact design minimises headroom loss (6.14” or 156mm from eye to eye).
Constructed with high-grade aircraft quality aluminium and with a safety factor of 6:1, its lightweight design does not sacrifice on strength in fact, Crosby SP’s link style dynamometers are on average 30% lighter than other suppliers.
- Large 1” / 25mm LCD display
- 6:1 Safety Factor
- 0.2% high accuracy
- Overload counter
- 90db Audible set point alarm
- RS-485 serial output
- IP65 / NEMA 4X
- Design validated by F.E.A.
- 2-year warranty
- Aircraft (engine) installation & maintenance
- Rigged with a gantry crane
- Steel beam fabrication
- General weighing
- Transportation tie downs
- Towing
- Linesman tensioning
- 2-year warranty
- Design validated by F.E.A.
- Complies with ASME B30.26
- 4 x AA Batteries
- Calibration & proof test certificate
- Multi-lingual user manual
- Carry/transit case
- RFID Tagged
