About
Wirelink plus is designed to be rigged with Crosby standard shackles - manufactured from aerospace grade aluminium and utilising an advanced internal design structure this range of non-indicating Load cells are extremely lightweight, easy to handle and are used worldwide in an array of industries for lifting, pulling, proof and structural load testing.
Decades of development into this product include many stand out features such as our unique strain gauging method that helps compensate for wire rope torque when the Wirelink is loaded.
The extremely versatile platform can be used with digital displays including the Straightpoint handheld plus, PLCs, Data Acquisition systems (DAQ) etc. and configured with a vast array of output formats to include mV/V, RS-422, RS-485, utilizing the ASCII, MODBUS RTU and CAN-BUS protocols.
The Wirelink plus is supplied with a 10 metre cable as standard however usable cable length varies greatly with lengths available to 1500 metres depending on the output format.
FEATURES
- Constructed of lightweight aluminium
- Available in capacities ranging from 1 to 300 tonnes
- High accuracy
- Multiple output options to include mV/V, analogue out, ASCII, MODBUS RTU and CAN-BUS
- Available with IP68 environmental protection
- Options for subsea use available
APPLICATIONS
- Testing
- Overhead Weighing
- Loadcell Rental
- Bollard Pulling
- Tug Testing
- Cable Tensioning
- Heavy Lift
WARRANTY & ASSURANCE
SUPPLIED WITH THE FOLLOWING AS STANDARD
- 2 year warranty
- DNV -GL Type Approval
- Complies with ASME B30.26
- Design validated by F.E.A.
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Proof test certificate
- Operator Manual
- Carry/Storage Case
- RFID Tagged
- 10M Cable
 |
 |
||
|
 |
About
Straightpoint’s Wireless Loadshackle (WLS) provides the perfect solution to limited headroom or super heavy lift projects. Available from stock in capacities from 3.25t to 400t (up to 3000t available POA) the WLS is constructed using industry-leading shackles from Crosby.
Two versions of the WLS are available:
- Long range 2.4Ghz version providing industry-leading wireless range of 1000m or 3280ft to SP's SW-HHP handheld or software options.
- Bluetooth output and can be connected to any smartphone running our free HHP app on iOS or Android at ranges up to 100m/328ft.
Each WLS is proof tested, then equipped with a hard-anodised aluminium electronics enclosure. Contained within this aluminium enclosure is an internal chassis providing IP67 or NEMA6 environmental protection even with the battery cover plate missing.
Featuring industry-leading wireless technology the WLS is supplied with an update rate of 3Hz and can be easily configured to run at industry-leading speeds of up to 200Hz if required for dynamic load measurement projects.
Utilising easily sourced AA alkaline batteries the WLS features advanced circuitry designed to protect the unit from damage associated with incorrectly installed batteries. This advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement.
The WLS may also be used with Straightpoint’s SW-PTP software package allowing the operator to perform load tests at a safe distance and generate real-time test certificates on-site.
A full array of wireless accessories is also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII) outputs.
FEATURES
- Wireless Range of 1000m or 3280ft
- Electronics housed in a hard anodised enclosure
- Environmentally sealed to IP67 or NEMA6
- Battery Life of 1200hrs from 4 x AA batteries
- Internal Antennae
- Remote On-Off from handheld display or software
- ATEXZones 0,1&2 available
APPLICATIONS
- Under Hook Crane Weighing
- Water weight bag testing
- Entertainment & theatre rigging
- Aircraft Manufacturing and Repair
- Tandem Lifting and Lowering
- Structural Load Testing and Certification
- Shipping & receiving weighing
- Off Shore Mooring Anchor Setting
- Crane and Hoist Calibration and Proof Load Testing
- Manufacturing and Heavy Construction
- Bollard pull testing and certification
- Swing Stage
- Catenary Anchor Leg Mooring (CALM) monitoring
- Hawser Tension Monitoring
- Single Point Mooring
WARRANTY & ASSURANCE
SUPPLIED WITH THE FOLLOWING AS STANDARD
- 2 year warranty
- Complies with ASME B30.26
- Design validated by F.E.A.
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Load Centralising bobbin
- 4 x AA Batteries
- Proof test & calibration certificate
- Operator Manual
- Carry/Storage Crate
About
The CableSafe is the continued evolution of SP’s running line tensiometers. Compatible with a wide range of rope and electrical cable diameters – 4-30mm.
When used in the field, it will allow the user to monitor tension with exceedingly high levels of accuracy, which ensures that rope/cables do not become overstretched or break.

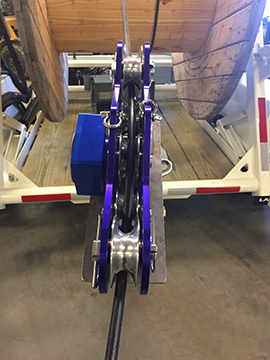

When using a capstan winch to unwind electrical cable from a reel/spool, you will be able to integrate the CableSafe within this setup to ensure that it is being pulled at a safe tension level. This helps the line maintain its transmission capability, prevents it from becoming a fire hazard risk, and it also stops the need for further work in order to remove and replace it. The contractor is gifted with decreased liability and dramatically increased peace of mind, using CableSafe on cable pulls reduces liabilities on cable installations. Ideal for the following applications:
- Measure tension when pulling electrical cables – protect against fractures or elongation
- Measuring tension on synthetic rope when erecting delicate structures using gin poles and capstan winch
Another example of the best use is during the installation of cell phone towers or similar delicate structures. You will be able to use the product to help ensure structure-to-ground ropes, connected to a gin pole and pully system, do not exceed maximum tension whilst lifting sections of the tower to the top. There can be the possibility of the rope becoming snagged and causing greater tension to be loaded upon the system. With heavy materials being lifted to great heights; this would create a major safety hazard leading to a catastrophic failure with the endangerment of lives. Avoid the unknown through accurate monitoring, especially when risks are high.
What distinguishes it apart from previous versions of this type is the developed lightweight design allowing for easy transportation and usage. It also provides up to 500 hours of battery life so that you can be assured that it won’t lose power before your workday ends. The high-level IP67/NEMA6 ingress protection allows the product to be used in a variety of heavy weather conditions and dusty environments. These features, as a collective, mean that it will be an invaluable and reliable tool in your work-related armoury.
The five-wheel design and gravity catches with top sheave pins allow for a fast and simple rope attachment setup. The accuracy is also improved over three-wheel alternatives.
When used with a cable/rope-pulling device you can remotely monitor the tension on the line using your smart handheld device via a Bluetooth connection*. You will be able to locate yourself up to 100m/328ft away from the Cable Safe to allow you to survey job progress from a distance.

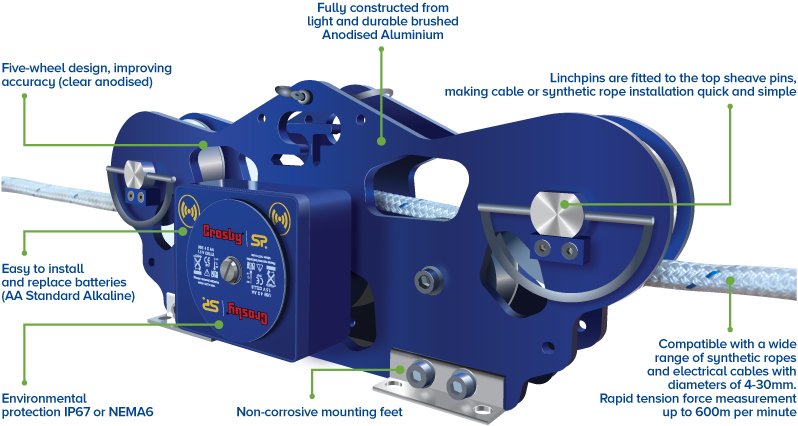

FEATURES
- Compatible with a wide range of rope diameters – 4-30mm
- Rapid tension force measurement - Up to 600m per minute
- Able to use in all weather and air quality conditions
- Easy to install and replace batteries (4 x AA standard Alkaline)
- Fully constructed from light and durable brushed Anodised Aluminium
- Five-wheel design improving accuracy (clear anodised)
- Linchpins are fitted to the top sheave pins making wire rope installation quick and simple
- IP67 ingress protection / NEMA 6 – heavy protection against dust and rain
BENEFITS
APPLICATIONS
• Fibre-optic cable pulling using turret winches
• Water gates for dams
• Offshore rescue and retrieval
• Capstan rope/cable winding
• Broadcast and telecommunications
• Erecting towers (maintaining structural capacity)
• Service and maintenance of cell towers
- Simple to use and setup
- Remote monitoring option using a smartphone via Bluetooth
- Maintenance-free heavy-duty needle bearings
APPLICATIONS
• Fibre-optic cable pulling using turret winches
• Water gates for dams
• Offshore rescue and retrieval
• Capstan rope/cable winding
• Broadcast and telecommunications
• Erecting towers (maintaining structural capacity)
• Service and maintenance of cell towers
WARRANTY & ASSURANCE
SUPPLIED WITH THE FOLLOWING AS STANDARD
- 2-year warranty
- Design validated by F.E.A.
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Proof test certificate
- Operator Manual
- Carry/Storage Crate
The safest choice for the working Arborist. Manufactured in partnership with DMM, the Impact Block has been designed to deliver the best performance in terms of alignment, resistance and appeal. The aesthetic curves of the Impact Block combines beauty, strength and durability to ensure a rope friendly surface.
Coupled with wireless dynamic load monitoring electronics and strain gauge technology from Straightpoint and providing real time data to either handheld controller or logging via our INSIGHT software to tablet or laptop, it is easy to see why this is one of the most sought after products in the industry.
Two versions of the Impact Block are available:
- Long range 2.4GHz version providing industry leading wireless range of 1000m or 3280ft to SP's SW-HHP handheld or software options.
- Bluetooth output and can be connected to any smart phone running our free HHP app on iOS or Android at ranges up to 100m or 328ft.
During development, the Straightpoint Impact Block has gone through a thorough dynamic and static validation testing regime. The end result is a highly functional product with an impressive strength to weight ratio.Coupled with wireless dynamic load monitoring electronics and strain gauge technology from Straightpoint and providing real time data to either handheld controller or logging via our INSIGHT software to tablet or laptop, it is easy to see why this is one of the most sought after products in the industry. During development, the Straightpoint Impact Block has gone through a thorough dynamic and static validation testing regime. The end result is a highly functional product with an impressive strength to weight ratio.The end result is a highly functional product with an impressive strength to weight ratio.
About
FEATURES
- Rounded edges to cheek plates maintain low rope abrasion when rope is fed ‘unfair’
- Upper sheave opens via a threaded locking axle for added security
- Thrust surfaces increase tolerance to external loading of spindle and anchor pin
- Direct connection to cordage, the anchor slings helps ensure correct neighbour component compatibility
- 1000m or 3280ft wireless range enabling operator to stand at safe distance
- Massive battery life of 1200 hours operational time
- Handheld display or data logging software options for all applications
BENEFITS
APPLICATIONS
- Lightweight attachment sling facilitates hauling of block, sling and rope to the climber and helps with handling, in tree stowage and workshop storage
- No easily broken external antennae
- High waterproof resistance to IP67/NEMA6 for all weather use
APPLICATIONS
- Tree care – dismantling ops and speed lines
- Forestry
- Winching operations
- Rescue
- Rigging
WARRANTY & ASSURANCE
SUPPLIED WITH THE FOLLOWING AS STANDARD
- 2 year warranty
- Design validated by F.E.A.
SUPPLIED WITH THE FOLLOWING AS STANDARD
- Proof test certificate
- Operator Manual
- Carry/Storage Case
- RFID Tagged
FCC: VHARA25
