Clamp On Line Tensionmeter - COLT Guy wire, steel wire, rope tension meter

guy wire rope tension meter - COLT
The Straibluetooth guy wire rope tension meter - COLTghtpoint COLT is a lightweight guy wire rope
tension meter for fast and accurate measurement of wire rope tensions up to 11,000lbf/5000 kgf and up to 1”/25mm diameter. Manufactured using an integral, high accuracy, Bluetooth module the COLT transmits load data wirelessly to any smart device running our Android or iOS app.

Tension wire measure for rigging towers, guy wires, overhead lines, zip lines, elevatir hoists, guard rails or architectural cables or any wire tension to ensure safety and correct operation.


Constructed from aerospace grade aluminium the COLT digital tensiometer is lightweight and easy to handle and operates on wires that are already under tension. Once in place it allows the operator to quickly check tension on cables or wire ropes set at any angle.

A built in smart device holder allows the COLT to be used as a traditional tension meter with on board display or the smartphone maybe handheld or mounted elsewhere.

This email address is being protected from spambots. You need JavaScript enabled to view it.Supplied in a purpose made carry case the COLT is portable and utilises standard alkaline batteries making this perfect for on-site cable tension measurement across the world.

National association of tower erectors


Overview

FEATURES AND BENEFITS
  • Unlimited wire rope calibration database via Android or iOS app
  • Main swivel joints fitted with high quality bearings
  • Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes
  • Wireless Bluetooth enabling operator to stand at safe distance if needed
  • Quick intuitive adjustable centre sheave makes changing wire rope sizes fast and easy
  • No easily broken external antennae
  • High waterproof resistant design for all weather use
  • Massive battery life of 1000 hours operational time
  • As the library of wire rope diameters and constructions is increased each app user will benefit when they update and receive any new data.

  • SUPPLIED WITH THE FOLLOWING AS STANDARD
  • Proof test certificate
  • Operator Manual
  • Carry/Storage Case
  • APPLICATIONS
  • Guy wire maintenance on cell towers, bridges, stacks, antennas & masts.
  • Guy Tension & Tower Alignment
  • Guy Tower Plumb & Tension
  • Testing for plumb and tension on cell towers
  • Guyed tower installation tips
  • Guyed tower deployment
  • EHS guy wire, Turnbuckle tensioner.
  • Wire rope installations, comparing, equalizing & measuring
  • Median cable barrier tensioning
  • Utility cable overhead line monitoring
  • Elevator hoist, governor & compensating wire rope maintenance
  • Zip lines & assault course testing
  • Fall arrest systems
  • Metro, tram and rail transit electric wires & catenary testing
  • Ski lifts
  • Wire rope tied downs on vessels (using Tirfor)
  • Testing tension of ship mast wire ropes.
  • Tensioned trellis systems

  • Specifications

    Clamp on line tensionmeter specifications

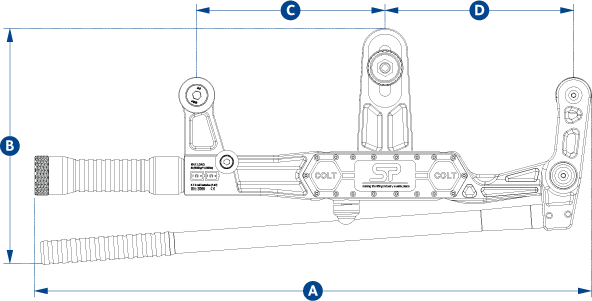

    clamp on line tensionmeter dimensions


    clamp on line tensiometer specifications

    Wire Rope Library

    SP COLT App Wire Rope Library

    If you have a rope dimension that is not yet in our App library this can easily be added, additions are unlimited.

    Metric Ropes
    Sl No Rope Name Rope Dia(mm - Inch) Strand Configuration Material WLL
    1 6mm 7x19 WRC 6mm - 15/64" 7x19 Galvanised 0.478te
    2 8mm 7x19 WRC 8mm - 5/16" 7x19 Galvanised 0.900te
    3 9mm 6X36 WC 9mm - 23/64" 6X36 Galvanised 1te
    4 10mm 7X19 WSC 10mm - 25/64" 7X19 Galvanised 1.2te
    5 12mm 7X19 WSC 12mm - 15/32" 7X19 Galvanised 1.85te
    6 12mm 6X36 WC 12mm - 15/32" 6X36 Galvanised 1.83te
    7 12mm 19X7 R.H.O.L 12mm - 15/32" 19X7 Galvanised 1.89te
    8 14mm 7X19 WRC 14mm - 35/64" 7X19 Galvanised 2.79te
    9 16mm 7X19 WSC 16mm - 5/8" 7X19 Galvanised 3te
    10 18mm 6X36 IWRC 18mm - 45/64" 6X36 Galvanised 4.1te
    11 19mm 7X19 IWRC 19mm - 25/32" 7x19 Galvanised 3.6te
    12 20mm 6X36 IWRC 20mm - 25/32" 6X36 Galvanised 3.8te
    13 22mm 6X36 WC 22mm - 55/64" 6X36 Galvanised 5te
    14 22mm 6X36 IWRC 22mm - 55/64" 6X36 Galvanised 5te
    15 24mm 6X36 IWRC 24mm - 15/16" 6X36 Galvanised 5te

    Imperial Ropes
    Sl No Rope Name Rope Dia(mm/Inch) Strand Configuration Material WLL
    1 3/16" 1X7 EHS  (RED) 3/16" 1X7 Galvanised 0.362te
    2 1/4" 1X7 EHS  (YELLOW) 1/4" 1X7 Galvanised 0.603te
    3 5/16" 1X7 EHS  (BLACK) 5/16" 1X7 Galvanised 1.016te
    4 3/8" 1X7 EHS  (ORANGE) 3/8" 1X7 Galvanised 1.397te
    5 7/16" 1X7 EHS  (GREEN) 7/16" 1X7 Galvanised 1.887te
    6 1/2" 1X7 EHS  (BLUE) 1/2" 1X7 Galvanised 2.440te
    7 9/16" 1X7 EHS  (YELLOW) 9/16" 1X7 Galvanised 3.175te
    8 5/8" 1X19 EHS (BLACK) 5/8" 1X19 Galvanised 3.645te
    9 11/16" 1X19 EHS (BLUE) 11/16" 1X19 Galvanised 4.536te
